Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole - Pack of 1000
Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole - Pack of 1000
SKU:01C-2d7a07
Dual locking Nylon Circuit Board Supports with .098 holes on both ends. Heat and fire-resistant. Pack of 1000.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole - Pack of 1000
$49.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole - Pack of 1000
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

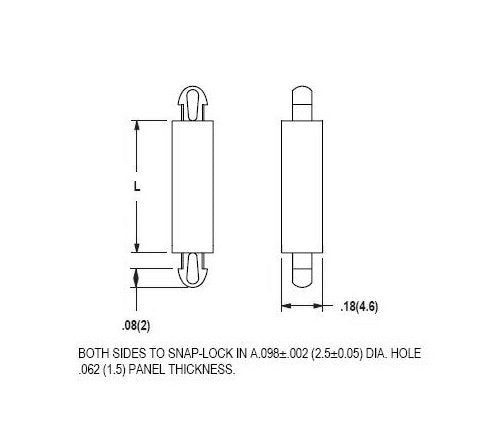

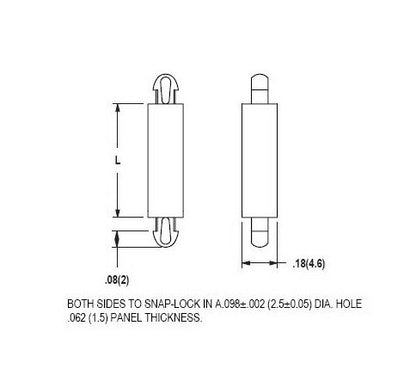

The 50 Series Nylon Circuit Board Supports feature a dual locking mechanism with teardrop heads and .098 diameter holes on both ends, ensuring secure attachment and stability. Made of Nylon 66 UL94V-2 material, these supports are durable and heat-resistant with a temperature range of -40 to 185 F. Measuring .787 inches in length and suitable for panel thickness of .062 inches, these supports are ASTM D 4066 and PA111 compliant. Additionally, they are RoHS compliant and can be ordered with V-0 rating for enhanced fire resistance. Ideal for various electronic applications, these supports offer reliable performance and easy installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dim L
.787 (20mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
