Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole, Pack of 1000
Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole, Pack of 1000
SKU:01C-f9ffbc
Secure and durable Nylon Circuit Board Supports. Teardrop head, .098 dia. hole both ends. Pack of 1000, RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole, Pack of 1000
$49.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .098 Board Hole x .098 Chassis Hole, Pack of 1000
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

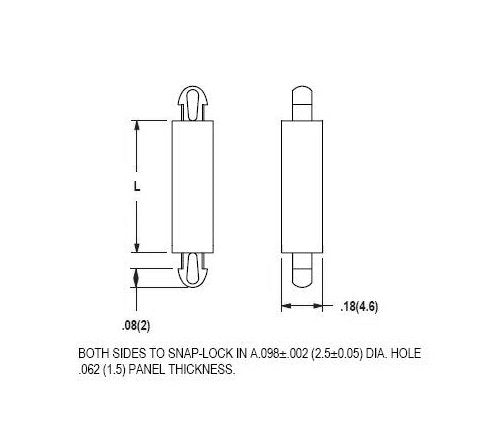

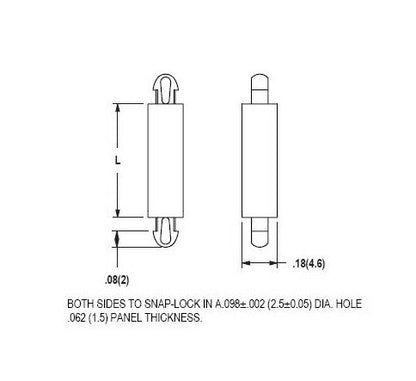

Enhance stability and organization with our 50 Series Circuit Board Supports. These dual locking supports feature a teardrop head with a .098 diameter hole on both ends, providing secure positioning for circuit boards. Made from Nylon 66 UL94V-2 material, these supports are durable and RoHS compliant. With a temperature range of -40 to 185 F (-40 to 85 C), they ensure reliable performance in various environments. Measuring .866 inches (22mm) in length and suitable for panel thickness of .062 inches (1.5mm), these supports meet ASTM D 4066 and PA111 standards.
Product Specifications
Specifications Dim L
.866 (22mm) +/- .015 inches (mm)
Specifications Hole Diameter
.098 (2.5mm) Both Ends inches (mm)
Specifications Panel Thickness
.062 (1.5mm) Both Ends inches (mm)
Specifications Remarks Hole Diameter
+/-.002
