Nylon Circuit Board Supports 11 & 34 Series
Nylon Circuit Board Supports 11 & 34 Series
SKU:01C-261267
Secure & versatile Nylon Circuit Board Supports with easy installation & reliable performance. RoHS compliant. Temp range: -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports 11 & 34 Series
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports 11 & 34 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

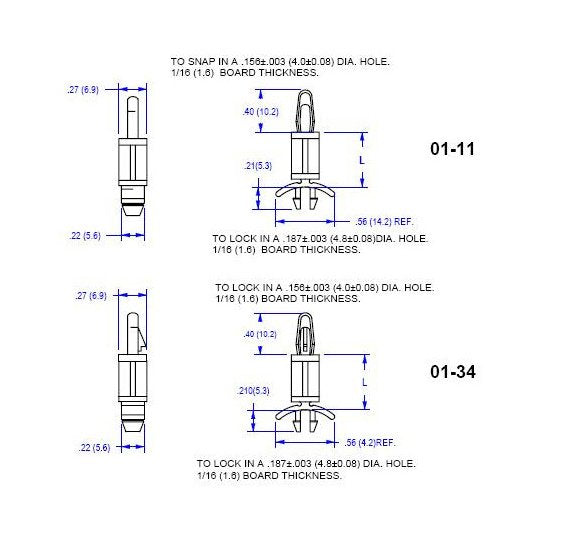

The Nylon Circuit Board Supports 11 & 34 Series are designed for easy installation, offering both snap-in (11) and lock-in (34) features for secure placement. These supports are releasable for quick repairs, providing convenience and efficiency in maintenance. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), they meet ASTM D 4066 and PA111 standards, ensuring reliable performance. With a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for various environments.
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Board Thickness
.063 (1.6) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Chassis Thickness
.063 (1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L 015
.625 (15.9) inches (mm)
Specifications Material Code
UL94V-2
