Nylon Circuit Board Supports - 12 Series: Keyslot x .156 Hole
Nylon Circuit Board Supports - 12 Series: Keyslot x .156 Hole
SKU:01C-894894
Durable Nylon 66 Keyslot circuit board supports for easy installation and repair, compliant with UL94V-2, ideal for electronics assembly.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - 12 Series: Keyslot x .156 Hole
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - 12 Series: Keyslot x .156 Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your circuit board assembly with our Nylon 66 Keyslot supports featuring a .156 inch board hole diameter. These supports are easily installed, removable for repairs, and compliant with UL94V-2 standards. With a temperature range of -40 to 185F, they offer durability and reliability for your electronic applications.

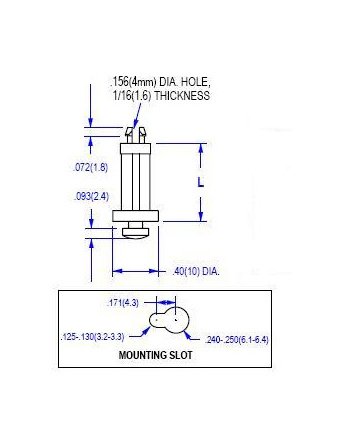

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Dim L
.250 (6.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Remarks Board Thickness
Board Thickness is for both ends.
