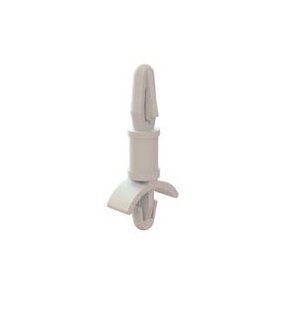

Nylon Circuit Board Supports: .125 Board Hole x .125 Chassis Hole - 54 Series
Nylon Circuit Board Supports: .125 Board Hole x .125 Chassis Hole - 54 Series
SKU:01C-9a94a9
Efficient Nylon Circuit Board Supports with .125 board hole x .125 chassis hole design, UL94V-2 material, and ASTM D 4066 PA111 compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports: .125 Board Hole x .125 Chassis Hole - 54 Series
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports: .125 Board Hole x .125 Chassis Hole - 54 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports from our 54 Series feature a .125 board hole x .125 chassis hole design, allowing for easy manual installation and reducing assembly time significantly. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are durable and reliable. With UL File No: E41938 and ASTM D 4066 PA111 compliance, they meet industry standards, making them ideal for a wide range of applications. RoHS compliant and featuring a temperature range of -40 to 185F (-40 to 85C), these supports ensure both safety and performance.

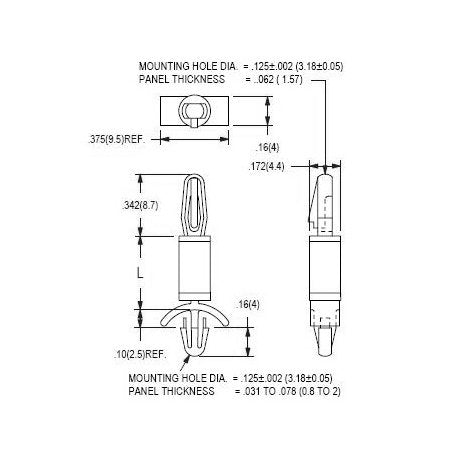

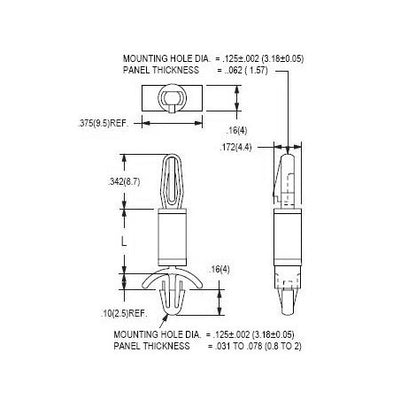

Product Specifications
Specifications Dim L
.187 (4.8) inches (mm)
