Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side, 18A Series
Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side, 18A Series
SKU:01C-7abc67
Secure and release with ease! Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side, 18A Series.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side, 18A Series
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports, .125 Board Hole x .125 Chassis Side, 18A Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports from the 18A Series offer easy hand installation with snap-lock functionality for secure attachment and effortless release. Featuring a mounting hole diameter of .125 (3.2mm) on both ends, these supports ensure a reliable fit. Made of Nylon 66 UL94V-2 material (UL94V-0 available), they meet ASTM D4066, PA111 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for various applications, providing durability and convenience in circuit board installations.
Product Specifications

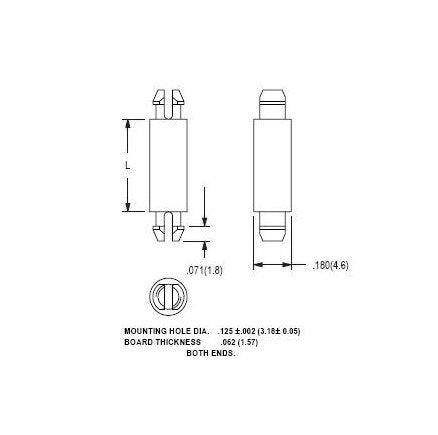

Specifications Dim L
.625 (15.9) inches (mm)
