Nylon Circuit Board Supports - 13-2 Series
Nylon Circuit Board Supports - 13-2 Series
SKU:01C-6fab07
Reliable Nylon Circuit Board Supports for .062 PCBs & .125 Chassis. Secure fit, ASTM D 4066, RoHS compliant. Temp range: -40 to 185F.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - 13-2 Series
$15.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - 13-2 Series
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

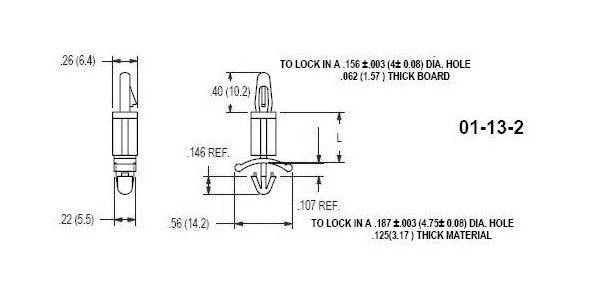

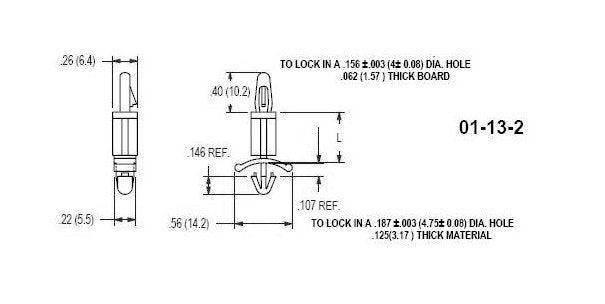

The Nylon Circuit Board Supports from the 13-2 Series are designed to provide reliable support for .062 thick PCBs and .125 thick chassis. These supports feature a lock fit mechanism for secure installation into PCBs and chassis, offering stability and durability in electronic assemblies. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet stringent industry standards including ASTM D 4066 and RoHS compliance for environmental safety. With a temperature range of -40 to 185F (-40 to 85C), these supports ensure reliable performance in varied operating conditions.
Product Specifications
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Thickness
.125 (3.17) inches (mm)
Specifications Dim L 015
.875 (22.2) inches (mm)
