Nylon Circuit Board Supports 13-3 Series
Nylon Circuit Board Supports 13-3 Series
SKU:01C-88f2b6
High-quality Nylon Circuit Board Supports for .093 thick PCBs with superior stability and ASTM compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports 13-3 Series
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports 13-3 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

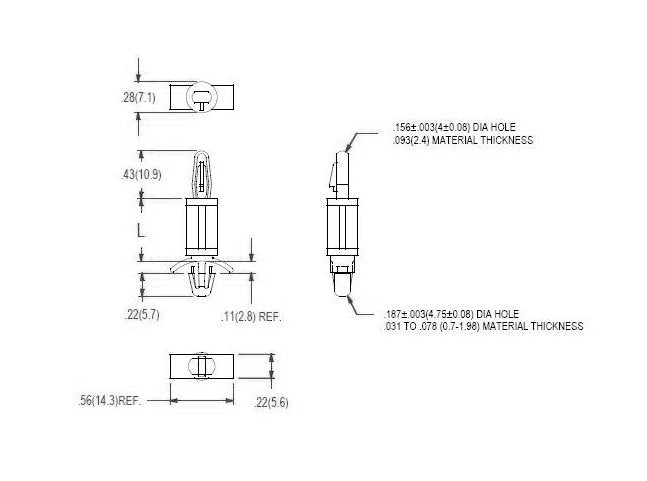

The Nylon Circuit Board Supports from the 13-3 Series are engineered for precise .093 thick PCB support with a secure fit into .187 chassis holes. These supports come in a packaging of 1000 units per bag, crafted from durable Nylon 66 material meeting UL94V-2 standards. Optional UL94V-0 variant available by adding 'X' to the part number. With a temperature range of -40 to 185F (-40 to 85C), these supports offer reliability in various environments. ASTM D 4066 and PA111 compliant, these supports ensure stability and safety for your circuit board installations.
Product Specifications
Specifications Board Thickness
.093 (2.4) inches (mm)
Specifications Chassis Thickness
.031 - .078 (.7-1.98) inches (mm)
Specifications Dim L 015
1.125 (31.7) inches (mm)
