Nylon Circuit Board Supports - 13A Series
Nylon Circuit Board Supports - 13A Series
SKU:01C-126f3d
Durable Nylon Circuit Board Supports for .062 PCBs and chassis, snap fit and lock mechanism, RoHS compliant, ASTM D 4066 & PA111.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - 13A Series
$39.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - 13A Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

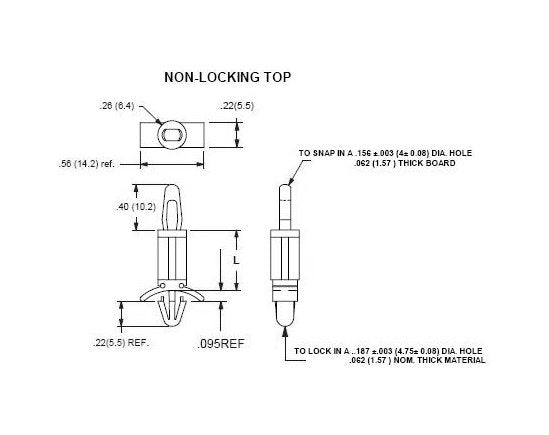

The Nylon Circuit Board Supports in the 13A Series are designed for .062 thick PCBs and chassis, featuring a snap fit into the PCB and locking functionality into the chassis. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports offer durability and reliability. With ASTM D 4066 and PA111 compliance, they are RoHS compliant and suitable for a temperature range of -40 to 185F. Each pack contains 500 supports, providing secure and reliable mounting for your circuit boards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
1.00 (25.4) inches (mm)
