Nylon Circuit Board Supports - .156 Board Hole x .125 Chassis Hole

Name: Nylon Circuit Board Supports - .156 Board Hole x .125 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-615a39
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-615a39

Enhance circuit board installations with these durable Nylon supports for secure yet easily detachable placements.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board installations with precision and efficiency using these Nylon Circuit Board Supports. Designed for easy hand installation, the boards secure firmly in place while remaining easily detachable. These supports are crafted from UL94V-2 Nylon 66 material, ensuring durability and reliability in diverse settings. With a temperature range of -40 to 185F, these supports offer exceptional performance in various environments. Compliant with RoHS standards and ASTM D 4066, PA111, these supports meet the highest industry benchmarks for safety and quality.

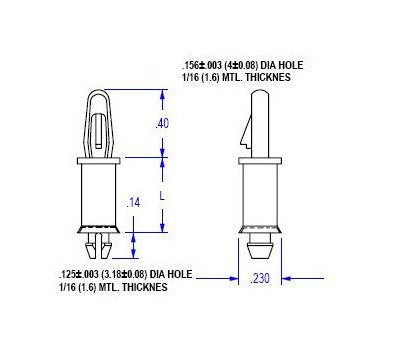

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Dim W

.189 (4.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.062 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon Circuit Board Supports - .156 Board Hole x .125 Chassis Hole
