Nylon Circuit Board Supports: .156 Board Hole x .125 Chassis Hole
Nylon Circuit Board Supports: .156 Board Hole x .125 Chassis Hole
SKU:01C-8b6041
Effortless installation and secure board end connections with Nylon Circuit Board Supports in the 17 Series. Compliant with ASTM standards and RoHS regulations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports: .156 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports: .156 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports in the 17 Series are designed for effortless installation by hand, ensuring a secure yet easily releasable fit for board end connections. Made of Nylon 66 UL94V-2 material (with UL94V-0 option available), these supports are compliant with ASTM D4066 and PA111 standards. With a wide temperature range from -40 to 185F (-40 to 85C), they offer durability and reliability. Each pack comes with 500 supports in a natural color, suitable for various panel thicknesses. Enhance your circuit board assemblies with these compliant and versatile supports.

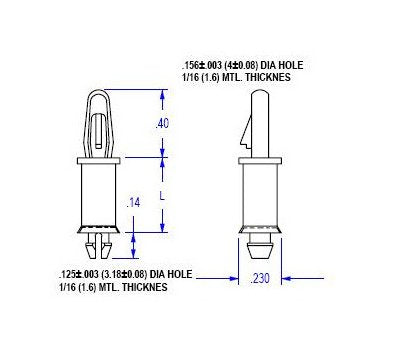

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.437 (11.1) inches (mm)
Specifications Dim W
.189 (4.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
