Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole

Name: Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-d5acf8
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-d5acf8

Effortlessly install Nylon Circuit Board Supports to enhance efficiency and safety in circuit board assemblies.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports in the 05 Series with a .156 Board Hole x .156 Chassis Hole offer effortless manual installation, streamlining assembly processes and reducing downtime. Each bag contains 500 supports made of durable Nylon 66 UL94V-2 material, ensuring reliability and longevity. These supports are RoHS compliant and suitable for a wide temperature range from -40 to 185F (-40 to 85C), making them versatile for various applications. For enhanced safety, UL94V-0 material variant is also available upon request. Upgrade your circuit board setup with these precise and reliable supports.

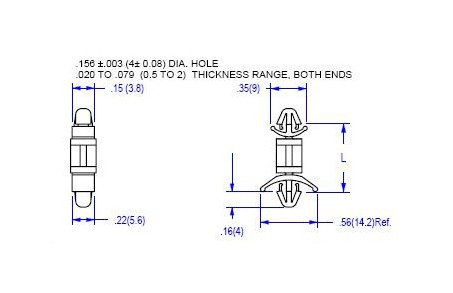

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.902 (22.9) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
