Nylon Circuit Board Supports: .156 Board Hole x .156 Chassis Hole

Name: Nylon Circuit Board Supports: .156 Board Hole x .156 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-00834c
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-00834c

Effortlessly install Nylon Circuit Board Supports from the 05 Series for efficient assembly. RoHS compliant, with a temperature range of -40 to 185F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports from the 05 Series with .156 Board Hole x .156 Chassis Hole offer easy hand installation, streamlining assembly processes. Each pack contains 500 supports, made from durable Nylon 66 UL94V-2 material (UL94V-0 available). These supports are ASTM D 4066 and RoHS compliant, ensuring safety and quality. With a temperature range of -40 to 185F (-40 to 85C), they provide reliable performance in various environments.

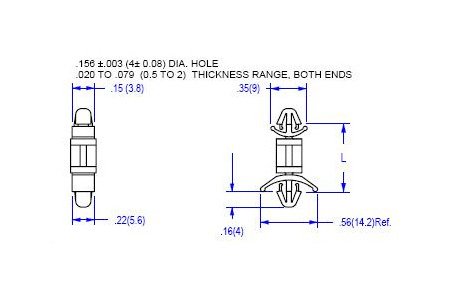

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.591 (15.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
