Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
SKU:01C-5e6371
Secure and removable Nylon Circuit Board Supports for .156 board and chassis holes, ASTM D 4066 & RoHS compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports in the 20 Series are designed for easy hand installation, ensuring a secure lock while remaining removable with simple prong tip pinching. Constructed from UL94V-2 Nylon 66 material (UL94V-0 available), these supports comply with ASTM D 4066 and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they provide reliable support for circuit boards. Each pack contains 500 supports in a natural color.
Product Specifications

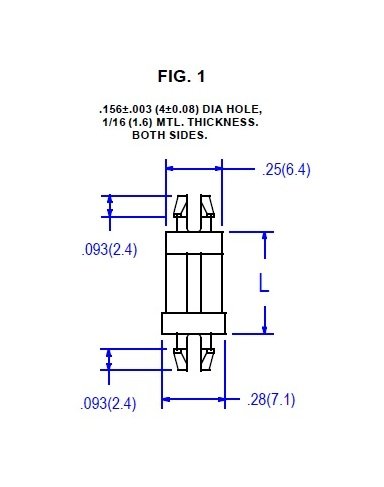

Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
.687 (17.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
