Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
SKU:01C-9372ff
Secure Nylon Circuit Board Supports with .156 Board Hole x .156 Chassis Hole. RoHS compliant. Pack of 500.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .156 Board Hole x .156 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports in the 20 Series offer reliable support for circuit boards, featuring a .156 Board Hole x .156 Chassis Hole design. Easy manual installation with secure locking mechanism for stability. Made of Nylon 66 UL94V-2 material (UL94V-0 available upon request), these supports are RoHS compliant and withstand temperatures from -40 to 185F. Each pack contains 500 supports, ideal for institutional and consumer electronics projects.
Product Specifications

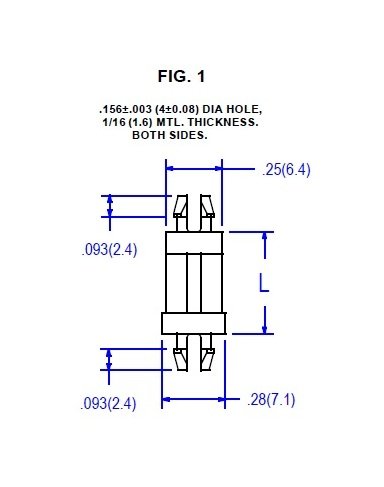

Specifications Boardchassis Hole Dia
.156 (4.0) inches (mm)
Specifications Dim L
.250 (6.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
