Nylon Circuit Board Supports .156" Board Hole x .156" Chassis Hole, UL94V-2

Name: Nylon Circuit Board Supports .156" Board Hole x .156" Chassis Hole, UL94V-2
Brand: All Electronics Hardware
SKU: 01C-5c660f
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-5c660f

Upgrade assembly with Nylon Circuit Board Supports: easy installation, UL94V-2 Nylon 66, ASTM D 4066, RoHS compliant, -40 to 185F temp range.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your assembly process with the 05 Series Nylon Circuit Board Supports. These supports ensure easy hand installation, saving valuable assembly time. Made from UL94V-2 Nylon 66 material (UL94V-0 available), these supports meet ASTM D 4066 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they provide durability in various environments. Each package contains 500 supports, designed to reduce board and chassis thickness within the range of .063 to .079 inches (1.6 to 2.0 mm). Enhance your projects with these reliable and compliant circuit board supports.

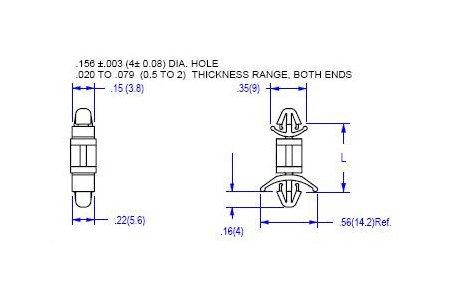

Product Specifications

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Thickness

.020 - .079 (0.5 - 2.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.650 (16.5) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
