Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole

Name: Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-bff32e
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-bff32e

Secure and durable Nylon Circuit Board Supports with .156 Board Hole and .187 Chassis Hole.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports in the 22 Series feature a convenient .156 Board Hole and .187 Chassis Hole for easy installation and secure locking. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these support posts are RoHS compliant and have a temperature range of -40 to 185F. With a panel thickness of .063 inches, these supports ensure stability for your circuit boards. The support posts meet ASTM D 4066 standards, providing reliability and durability for your projects.

Product Specifications

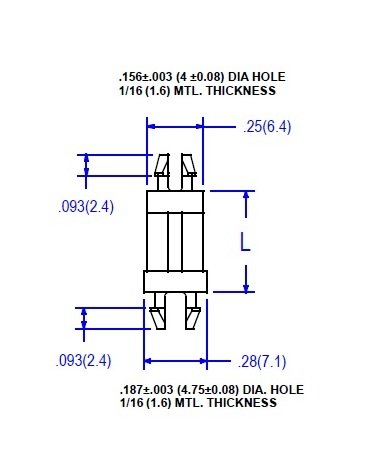

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.875 (22.3) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
