Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole

Name: Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-5ad5c5
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-5ad5c5

Secure and removable Nylon Circuit Board Supports with .156 Board Hole x .187 Chassis Hole, ASTM D 4066, RoHS compliant

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your circuit board installations with these Nylon Circuit Board Supports featuring a secure yet removable design. Made of UL94V-2 Nylon material, these supports offer reliable performance with a temperature range of -40 to 185F. Each support comes with a Board Hole Diameter of .156 inches, Chassis Hole Diameter of .187 inches, and a Panel Thickness of .063 inches. Ideal for institutional use, these supports meet ASTM D 4066 standards and are RoHS compliant, ensuring quality and safety.

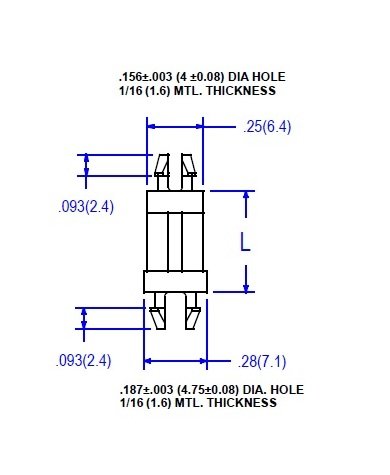

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
