Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole - 11 & 34 Series

Name: Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole - 11 & 34 Series
Brand: All Electronics Hardware
SKU: 01C-ff0f56
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ff0f56

Secure and durable Nylon Circuit Board Supports for easy installations and repairs. Pack of 500. Meets ASTM, RoHS, and UL standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports in the 11 & 34 Series offer easy manual installation with a snap or lock feature for secure placement. Designed for effortless repairs, these supports come in a pack of 500. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM, RoHS, and UL standards. With a temperature range of -40 to 185F, they ensure reliable performance in diverse environments.

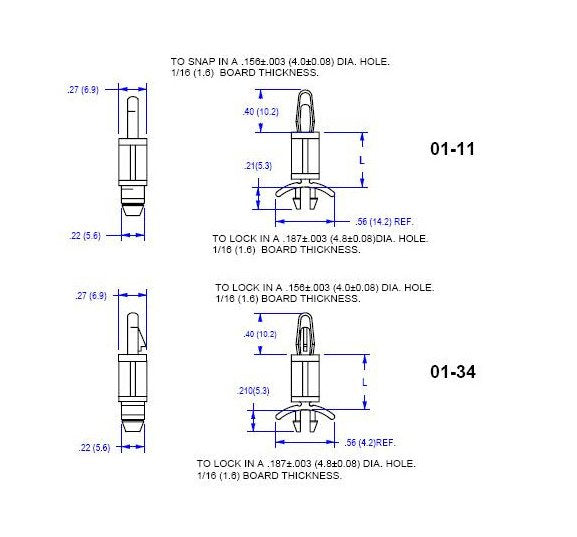

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L 015

.812 (20.6) inches (mm)

Specifications Material Code

UL94V-2

Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole - 11 & 34 Series
