Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole

Name: Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-abd1da
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-abd1da

Sturdy Nylon Circuit Board Supports for enhanced stability and easy installation. Meets industry standards for reliability.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance stability and support for circuit boards with our Nylon Circuit Board Supports. These support posts are designed for easy manual installation, ensuring a secure lock while remaining effortless to remove. The material, Nylon 66 UL94V-2, meets stringent industry standards for reliability and safety. With a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for various environments. Each pack includes 500 supports, making it convenient for bulk usage.

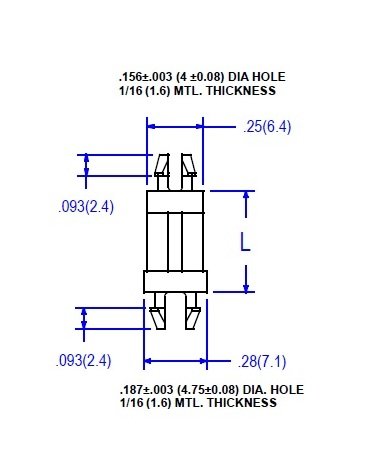

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

1.125 (28.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
