Nylon Circuit Board Supports - .156" Board Hole x .187" Chassis Hole

Name: Nylon Circuit Board Supports - .156" Board Hole x .187" Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-8785b3
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-8785b3

Reliable Nylon Circuit Board Supports for .156" Board Hole x .187" Chassis Hole, ASTM D 4066 certified.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports from the 22 Series provide reliable support for circuit boards with a .156" board hole and .187" chassis hole. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these support posts ensure easy installation by hand and secure locking. The supports are RoHS compliant, with a temperature range of -40 to 185F (-40 to 85C). With a panel thickness of .063 inches, these supports are ASTM D 4066 certified, making them ideal for various applications demanding precision and durability.

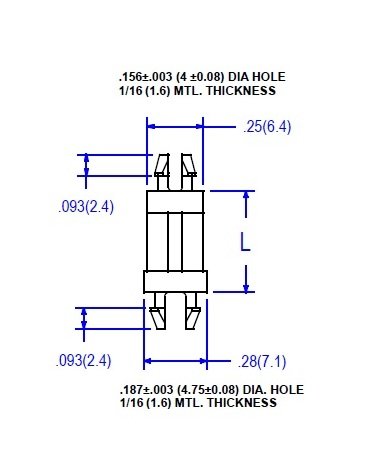

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.562 (14.3) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon Circuit Board Supports - .156" Board Hole x .187" Chassis Hole
