Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole

Name: Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-1e1855
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-1e1855

Secure and durable Nylon Circuit Board Supports for easy installation and repairs. Pack of 500, temperature-resistant from -40 to 185F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

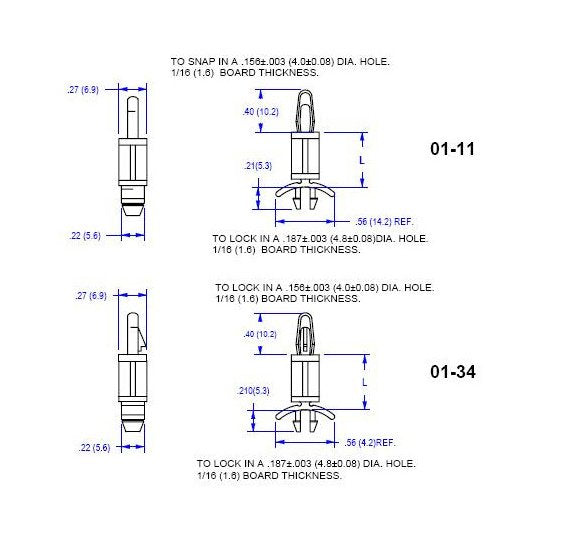

The Nylon Circuit Board Supports from the 11 & 34 Series offer easy, manual installation with a snap or lock mechanism, ensuring secure placement. Ideal for quick repairs, each pack contains 500 supports made of Nylon 66 UL94V-2 material, with UL94V-0 variant available for higher fire resistance. These supports are temperature-resistant from -40 to 185F (-40 to 85C), meeting ASTM and RoHS compliance standards.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L 015

.437 (11.1) inches (mm)

Specifications Material Code

UL94V-2

Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
