Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole

Name: Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-d27779
Price: 34.99 USD
Availability: OutOfStock

SKU:01C-d27779

Securely install electronic components with Nylon Circuit Board Supports from the 11 & 34 Series. RoHS compliant, durable Nylon material with .156" board hole and .187" chassis hole.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports from the 11 & 34 Series feature a .156-inch board hole and .187-inch chassis hole for easy installation, ensuring secure attachment for electronic components. The supports are made of Nylon 66 UL94V-2 material, meeting RoHS compliance and ASTM D 4066, PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), these supports are durable and reliable for a wide range of applications. They come in a pack of 500 units, allowing for convenient bulk usage and are releasable for quick repairs.

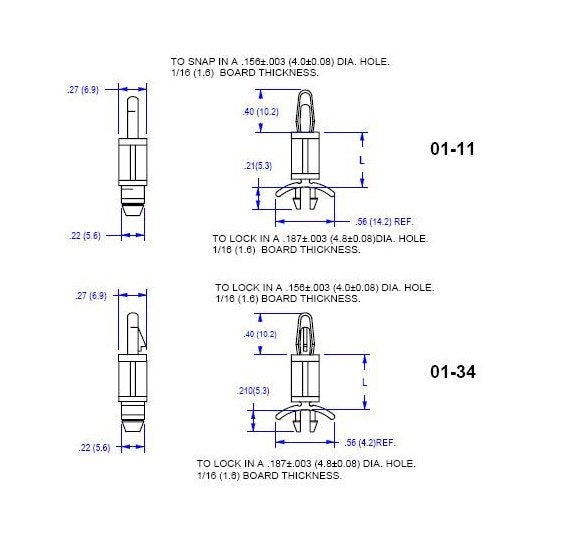

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Board Thickness

.063 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L 015

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-2

Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
