Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
SKU:01C-fed233
Secure and durable Nylon circuit board supports, RoHS compliant with wide temp range. Pack of 500, easy to install and remove.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports from the 22 Series feature a .156 inch board hole and a .187 inch chassis hole, ensuring secure installation and easy removal by pinching prong tips. Constructed with Nylon 66 UL94V-2 material, these supports are RoHS compliant and offer a wide temperature range of -40 to 185F. Ideal for various applications, the supports come in a natural color and are available in a pack of 500. Add 'X' to the part number for UL94V-0 material.
Ready to Grow Without Cash Flow Constraints?

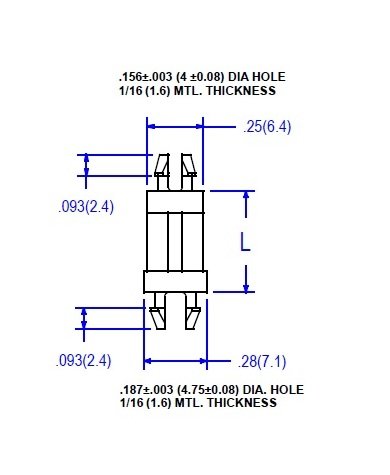

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Dim L
.312 (7.92) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
