Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole - Pack of 500

Name: Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole - Pack of 500
Brand: All Electronics Hardware
SKU: 01C-a34b29
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-a34b29

Secure and easy-to-install Nylon Circuit Board Supports for precise assembly applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports from the 22 Series feature a .156-inch board hole and .187-inch chassis hole, ensuring secure installation. Crafted from Nylon 66 UL94V-2 material, these supports are RoHS compliant and offer a temperature range of -40 to 185F. With ASTM D 4066 and UL E157012 certifications, they guarantee durability and reliability. The innovative design allows for easy hand installation and removal, making them ideal for various applications. Additionally, UL94V-0 material option is available by adding 'X' at the end of the part number.

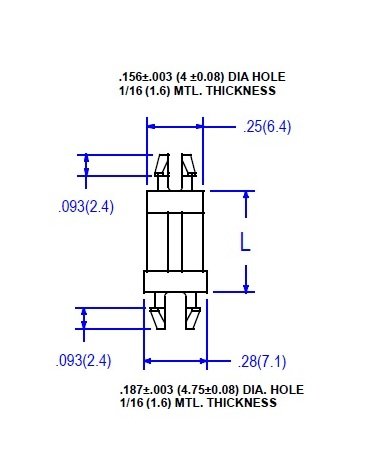

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.812 (20.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon Circuit Board Supports: .156 Board Hole x .187 Chassis Hole - Pack of 500
