Nylon Circuit Board Supports - .156 Board Hole x 6-32 Threaded Chassis Hole
Nylon Circuit Board Supports - .156 Board Hole x 6-32 Threaded Chassis Hole
SKU:01C-8a18ce
Premium Nylon Circuit Board Supports with .156 PCB Hole x 6-32 Threaded Chassis Hole, UL94V-2 material. Pack of 1000.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .156 Board Hole x 6-32 Threaded Chassis Hole
$49.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .156 Board Hole x 6-32 Threaded Chassis Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

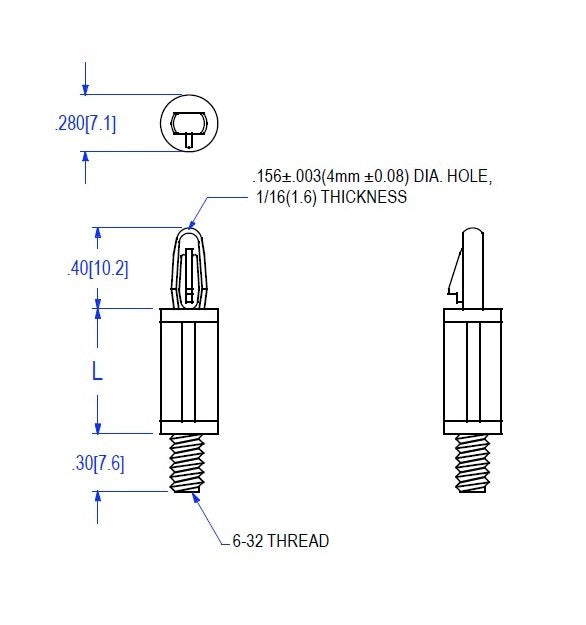

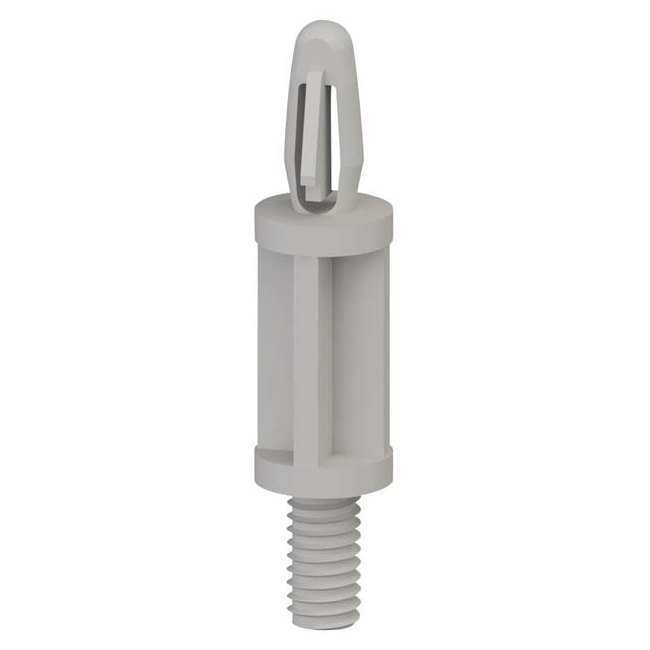

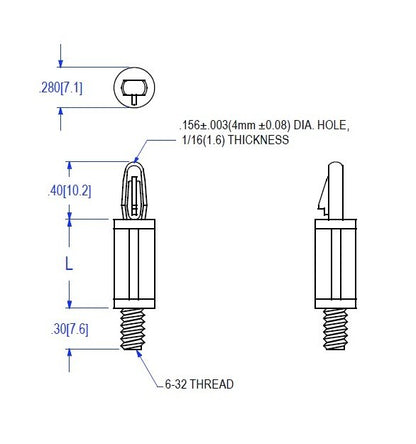

The Nylon Circuit Board Supports from the 66 Series offer reliable support with a .156 PCB hole and a 6-32 threaded chassis hole. Each pack contains 1000 supports made of Nylon 66 UL94V-2 material (UL94V-0 available upon request). These supports comply with UL File No: E70062, ASTM D 4066, and PA111 standards, ensuring quality and safety. Operating within a temperature range of -40 to 185F (-40 to 85C), they provide durability in various environments.
Product Specifications
Specifications Dim L 015 4 Mm
.750 (19.1) inches (mm)
