Nylon Circuit Board Supports - 18 Series, .125 Board Hole x .125 Chassis Side

Name: Nylon Circuit Board Supports - 18 Series, .125 Board Hole x .125 Chassis Side
Brand: All Electronics Hardware
SKU: 01C-57a5fa
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-57a5fa

Secure and release with ease! Nylon Circuit Board Supports from our 18 Series, .125 Board Hole x .125 Chassis Side. Pack of 500, Nylon 66 UL94V-2 material, ASTM D4066, RoHS Compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Circuit Board Supports from our 18 Series are designed for easy manual installation, featuring snap-lock functionality for secure placements that are also easily releasable. With a mounting hole diameter of .125 inches (3.2mm) at both ends, these supports offer a reliable solution for circuit board mounting. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D4066 and RoHS compliance, ensuring durability and safety in a temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 units in a natural color for efficient deployments.

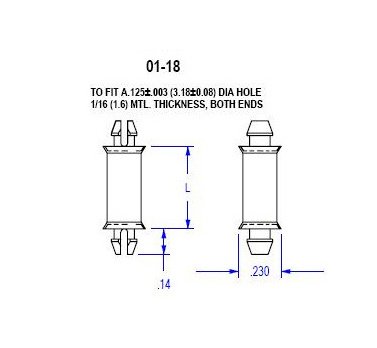

Product Specifications

Specifications Board Hole Diameter

.125 (3.2) inches (mm)

Specifications Dim L

.441 (11.2) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon Circuit Board Supports - 18 Series, .125 Board Hole x .125 Chassis Side
