Nylon Circuit Board Supports, .187 Board Hole x .187 Chassis Hole

Name: Nylon Circuit Board Supports, .187 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-6650b2
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-6650b2

Enhance circuit board installations with Nylon supports, secure locking, RoHS compliant, -40 to 185F temp range

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board installations with the 21 Series: .187 Board Hole x .187 Chassis Hole Nylon Circuit Board Supports. These support posts are designed for easy hand installation and secure locking. Crafted from Nylon 66 UL94V-2 material, these supports offer durability and heat resistance, meeting RoHS compliance standards. With a temperature range of -40 to 185F (-40 to 85C), these supports provide reliable performance in various environments.

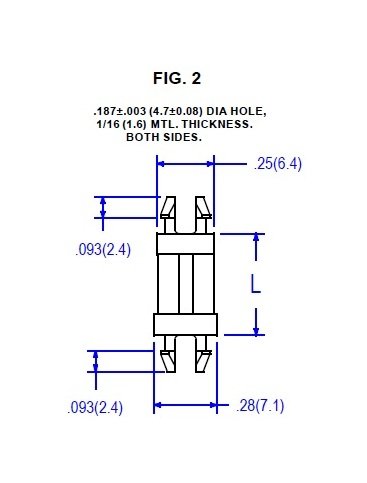

Product Specifications

Specifications Boardchassis Hole Dia

.187 (4.8) inches (mm)

Specifications Dim L

1.125 (28.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

Nylon Circuit Board Supports, .187 Board Hole x .187 Chassis Hole
