Nylon Circuit Board Supports - .187 Board Hole x .187 Chassis Hole
Nylon Circuit Board Supports - .187 Board Hole x .187 Chassis Hole
SKU:01C-4bd019
Secure, durable Nylon Circuit Board Supports with .187 Board & Chassis Hole. Easy to install & RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - .187 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - .187 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Circuit Board Supports from our 21 Series are essential components for securely mounting circuit boards. With a .187 inch board hole and chassis hole, these supports ensure a precise fit for your electronic assemblies. Made from UL94V-2 Nylon 66 material, these supports are durable and RoHS compliant, offering a temperature range of -40 to 185°F. Each support post installs easily by hand and locks securely in place, providing the stability your applications need. Trust in these supports for reliable performance and ease of maintenance in your projects.
Product Specifications

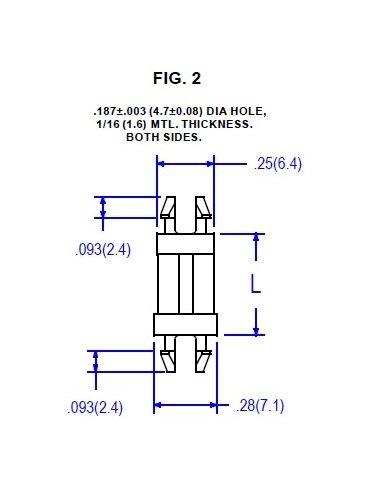

Specifications Boardchassis Hole Dia
.187 (4.8) inches (mm)
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
