Nylon Circuit Board Supports: 4mm Mounting Hole, Dual Locking Design - Pack of 1000

Name: Nylon Circuit Board Supports: 4mm Mounting Hole, Dual Locking Design - Pack of 1000
Brand: All Electronics Hardware
SKU: 01C-9475e8
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-9475e8

Secure your circuit boards with precision using Nylon Circuit Board Supports. Pack of 1000, UL94V-2 compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

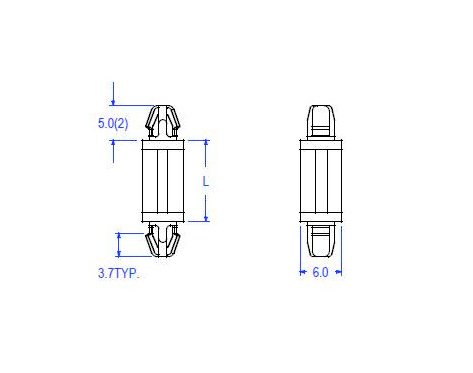

The 27 Series Nylon Circuit Board Supports feature a metric dual locking support post with a 4mm mounting hole on both ends, ensuring secure attachment for circuit boards. Made from Nylon 66 material, these supports are durable and meet UL94V-2 standards (UL94V-0 available). With a temperature range of -40 to 185°F, they offer reliability in various operating conditions. Each pack contains 1000 units, providing ample supplies for your projects. Ensure stability and protection for your circuit boards with these high-quality supports.

Product Specifications

Specifications Color

White

Specifications Dim L

6.0 ± .38 mm

Specifications Material Code

UL94V-0

Specifications Mounting Hole Diameter

4.0 mm

Specifications Pt Panel Thickness

1.6 mm

Specifications Remarks Panel Thickness

Nominal Thickness, Panel thickness is for both ends.
