Nylon Circuit Board Supports, 8-32 Threaded Chassis Side, .156" Hole
Nylon Circuit Board Supports, 8-32 Threaded Chassis Side, .156" Hole
SKU:01C-f2bafd
Nylon Circuit Board Supports with 8-32 Threaded Chassis Side, .156" Hole, RoHS Compliant, Temperature Range: -40 to 185°F
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports, 8-32 Threaded Chassis Side, .156" Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports, 8-32 Threaded Chassis Side, .156" Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

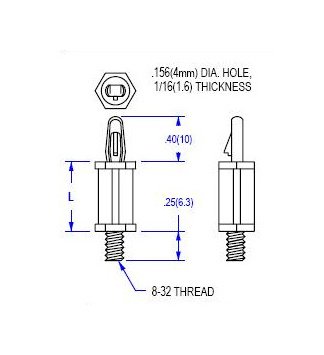

Upgrade your circuit board installations with these dependable Nylon Circuit Board Supports. Each support is designed with a .156" board hole and an 8-32 threaded chassis side fastened securely with an 8-32 hex nut (AEH Pt# 12-00-832). Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports are heat-resistant, RoHS compliant, and meet ASTM D 4066 and PA111 standards. Operating smoothly in temperatures ranging from -40 to 185°F (-40 to 85°C), these supports ensure stable and secure circuit board placements for various applications.
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Dim L
.625 (15.9) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
