Nylon Circuit Board Supports - Flat Board Side with .187 Chassis Hole (04A Series)
Nylon Circuit Board Supports - Flat Board Side with .187 Chassis Hole (04A Series)
SKU:01C-4290bf
Easy-to-install Nylon Circuit Board Supports for densely loaded PC boards, RoHS compliant, temperature-resistant, ASTM D 4066 and PA111 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports - Flat Board Side with .187 Chassis Hole (04A Series)
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports - Flat Board Side with .187 Chassis Hole (04A Series)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

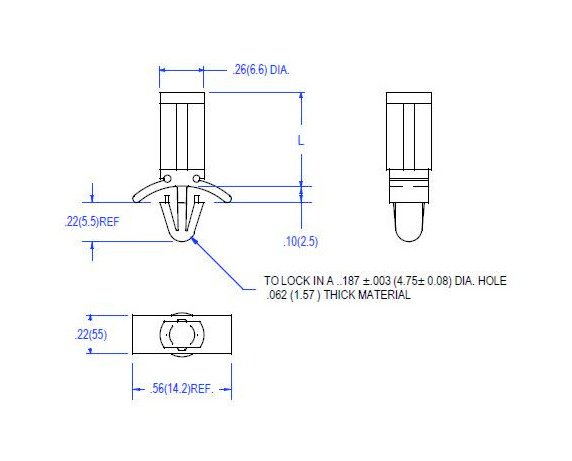

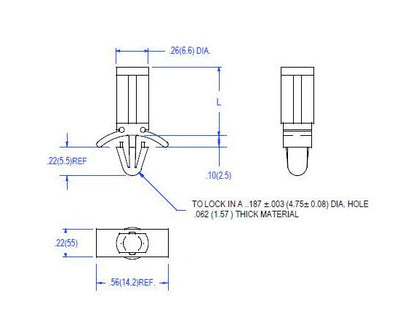

The Nylon Circuit Board Supports in the 04A Series offer a hassle-free installation process without the need for tools or screws, making them ideal for supporting densely loaded PC boards. With a panel range of 040-.078 inches and a sturdy mounting hole diameter of .187 inches, these supports are designed for reliability and durability. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). Trusted for their quality and performance, these supports meet ASTM D 4066 and PA111 standards, ensuring a secure and stable mounting solution for your circuit boards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Chassis Thickness
040-.078 (1-1.9) inches (mm)
Specifications Color
Natural
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Mounting Hole Diameter
.187 (4.8) inches (mm)
