Enhance your assembly process with the 04A Series Circuit Board Supports, designed for easy installation without tools or screws. These supports securely hold densely loaded PC boards with a panel range of 040-.078 inches. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this product meets ASTM D 4066 and PA111 standards, is RoHS compliant, and offers a temperature range of -40 to 185F (-40 to 85C), ensuring durability and safety for your applications.
Ready to Grow Without Cash Flow Constraints?

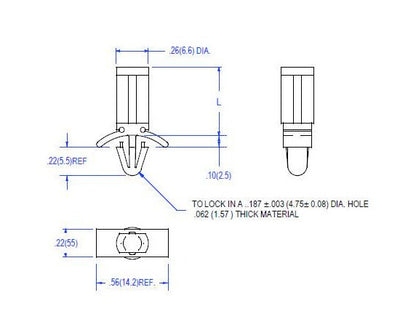

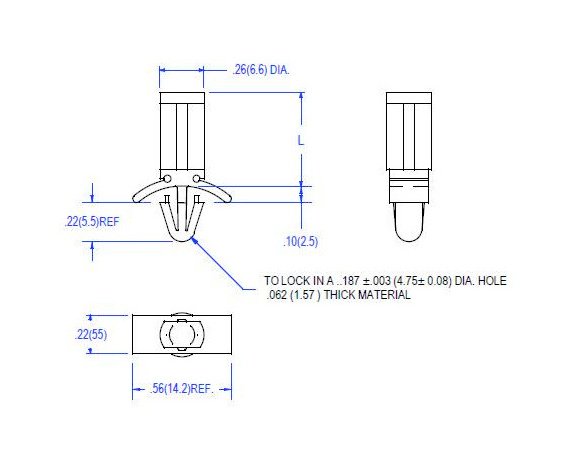

Product Specifications
Specifications Chassis Thickness
040-.078 (1-1.9) inches (mm)
Specifications Color
Natural
Specifications Dim L
.500 (12.7) inches (mm)
Specifications Mounting Hole Diameter
.187 (4.8) inches (mm)
