Nylon Circuit Board Supports with Self-Tapping Screw
Nylon Circuit Board Supports with Self-Tapping Screw
SKU:01C-91ef5c
Install with ease and reliability using our Nylon Circuit Board Supports with Self-Tapping Screw. RoHS compliant with durable Nylon 66 UL94V-2 material.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Circuit Board Supports with Self-Tapping Screw
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Circuit Board Supports with Self-Tapping Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

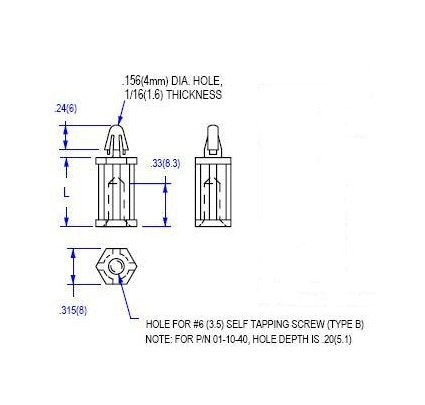

The Nylon Circuit Board Supports with Self-Tapping Screw from our 10 Series offer easy installation with a self-tapping screw, making it ideal for limited space applications. Featuring minimal protrusion and a releasable PC board mount end, these supports are made of Nylon 66 UL94V-2 material, with UL94V-0 available upon request. Meeting ASTM D 4066 and PA111 standards, these supports are RoHS compliant and have a temperature range of -40 to 185F (-40 to 85C), ensuring durability and reliability in various environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Thickness
.063 (1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
.375 (9.5) inches (mm)
Specifications Material Code
UL94V-2
