Nylon Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole

Name: Nylon Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-f622b1
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-f622b1

Enhance circuit board support with Nylon Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board support system with our premium Nylon Dual Locking Board Support. This innovative solution features a teardrop head design with a .098 dia. Hole on both ends for secure locking. Made of Nylon 66 UL94V-2 material, this support is durable and RoHS compliant, ensuring safety and reliability. With a temperature range of -40 to 185 F (-40 to 85 C), it is suitable for various environments. Meet ASTM D 4066 and PA111 standards with this versatile and efficient board support.

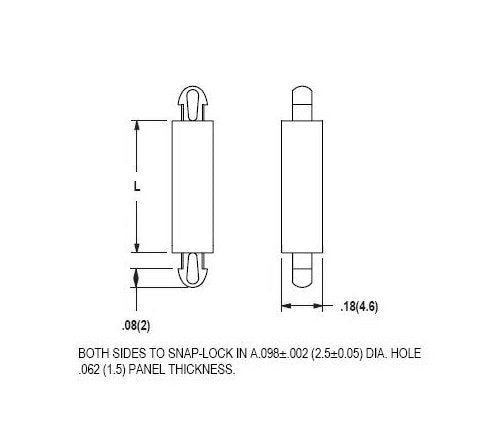

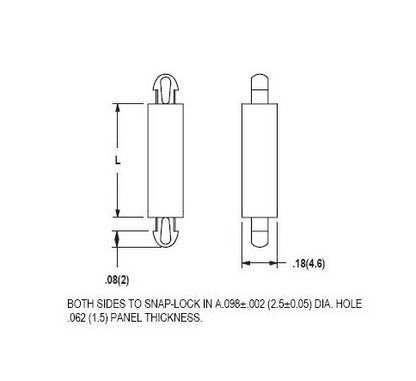

Product Specifications

Specifications Dim L

.197 (5mm) +/- .015 inches (mm)

Specifications Hole Diameter

.098 (2.5mm) Both Ends inches (mm)

Specifications Panel Thickness

.062 (1.5mm) Both Ends inches (mm)

Specifications Remarks Hole Diameter

+/-.002

Nylon Dual Locking Board Support - .098 Board Hole x .098 Chassis Hole
