Nylon Dual Locking Board Support (.125" Board Hole x .125" Chassis Hole)

Name: Nylon Dual Locking Board Support (.125" Board Hole x .125" Chassis Hole)
Brand: All Electronics Hardware
SKU: 01C-c24ec9
Price: 59.99 USD
Availability: OutOfStock

SKU:01C-c24ec9

Secure and versatile Nylon Dual Locking Board Support for circuit boards, .125" hole diameter, easy to install, releasable for repairs, RoHS compliant.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Nylon Dual Locking Board Support from the 52 Series offers a secure and versatile solution for circuit board mounting. Featuring a mounting hole diameter of .125 inches at both ends, this support is easy to install by hand and releasable for repairs. Composed of Nylon 66 UL94V-2 material, with UL File No E41938 and RoHS compliance, it ensures durability and safety. With a temperature range of -40 to 185F, this support is designed to withstand varying environmental conditions. Each pack contains 1000 supports, making it suitable for bulk applications.

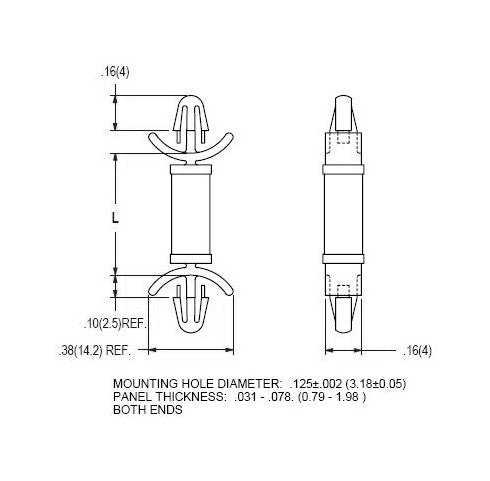

Product Specifications

Specifications Board Hole Diameter

.125 (3.18) inches (mm)

Specifications Chassis Hole Diameter

.125 (3.18) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Panel Thickness

.031-.078 (.8-.1.98) Both Ends inches (mm)
