Nylon Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
Nylon Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
SKU:01C-ec926a
Reliable Nylon Dual Locking Board Support for circuit boards with .137 board hole, .137 chassis hole, and .031-.08 chassis thickness. Easy repairs, RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Dual Locking Board Support - .137 Board Hole x .137 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

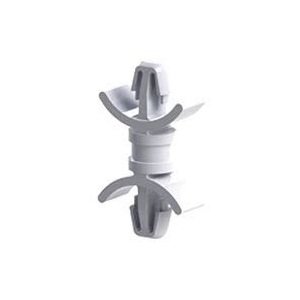

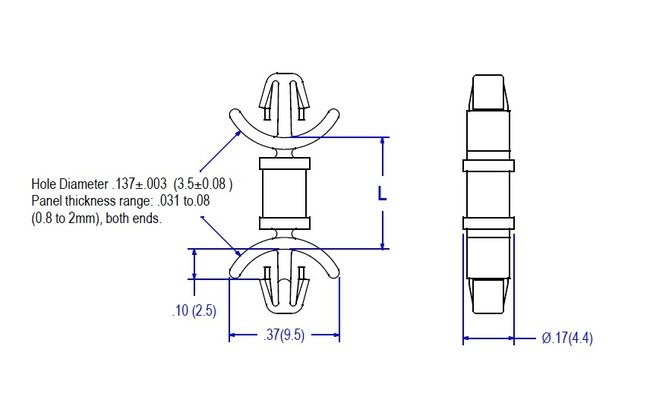

The 01A Series Nylon Dual Locking Board Support is designed for circuit board applications, featuring a mounting hole diameter of .137 inches (3.5mm) on both ends and compatibility with chassis thickness ranging from .031 to .08 inches. This support is releasable for easy repairs, made of Nylon 66 UL94V-2 material with an option for UL94V-0 variant. It meets ASTM D 4066 and PA0113 standards, is RoHS compliant, and operates within a temperature range of -40 to 185F (-40 to 85C), ensuring durability and reliability for your applications.
Product Specifications
Specifications L 015
.562 (14.3) inches (mm)
