Nylon Dual Locking Board Supports - .125" Board Hole x .125" Chassis Hole, 1000 Pack
Nylon Dual Locking Board Supports - .125" Board Hole x .125" Chassis Hole, 1000 Pack
SKU:01C-8b648a
Secure, easy-to-install Nylon Dual Locking Board Supports with .125" Board Hole x .125" Chassis Hole. RoHS compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Nylon Dual Locking Board Supports - .125" Board Hole x .125" Chassis Hole, 1000 Pack
$129.99
Quantity: 1
Claim Your Seller Account
Nylon Dual Locking Board Supports - .125" Board Hole x .125" Chassis Hole, 1000 Pack
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

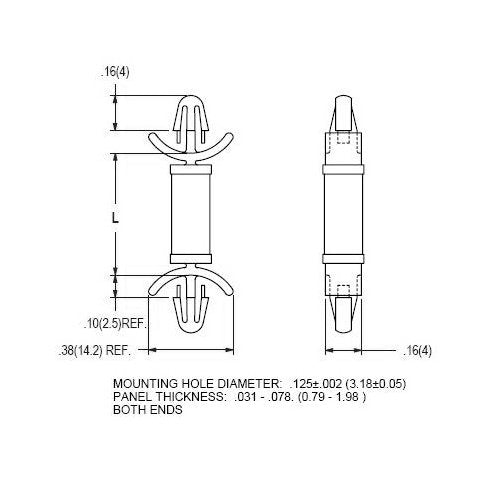

The Nylon Dual Locking Board Supports from the 52 Series feature a mounting hole diameter of .125 inches for both ends, ensuring secure installation and easy releasability for repairs. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and can withstand temperatures ranging from -40 to 185F. With a panel thickness suitable for diverse applications, these supports offer reliability and convenience for circuit board installations.
Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.18) inches (mm)
Specifications Dim L
.187 (4.8) inches (mm)
Specifications Panel Thickness
.031-.078 (.8-.1.98) Both Ends inches (mm)
