Nylon Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
Nylon Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
SKU:01C-935400
Securely install Nylon Dual Locking PCB Supports for .062 panel thickness with ease. RoHS compliant, temperature-resistant, and ASTM-certified.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Nylon Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
$39.99
Quantity: 1
Claim Your Seller Account
Nylon Dual Locking PCB Support - .100 Board Hole x .100 Chassis Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

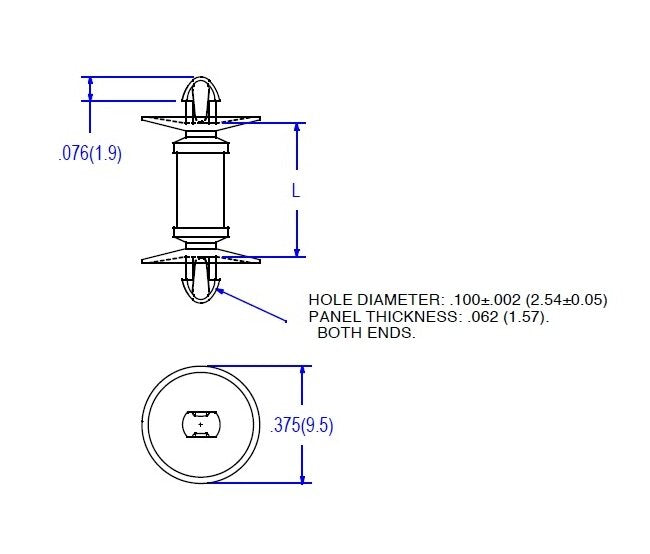

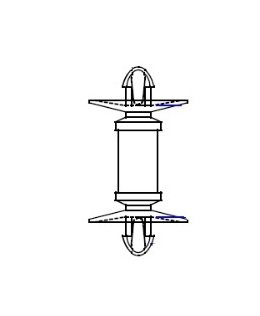

The Nylon Dual Locking PCB Support from the 81 Series is designed for .062 panel thickness, offering secure installation by hand. These cupped supports are crafted from UL94V-2 compliant Nylon 66 material, ensuring durability and reliability. With ASTM D 4066 and PA0113 certifications, this product is RoHS compliant and operates smoothly in a temperature range of -40 to 185F (-40 to 85C). Each pack contains 1000 supports, each measuring .500 inches (12.7mm) in length.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
