Nylon Edge Board Mount for .187 Chassis Hole - UL94V-0

Name: Nylon Edge Board Mount for .187 Chassis Hole - UL94V-0
Brand: All Electronics Hardware
SKU: 01C-58bb00
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-58bb00

Securely mount circuit boards with the UL94V-0 Nylon Edge Board Mount. Easy installation, RoHS compliant, and durable design.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 03 Series Nylon Edge Board Mount is designed for easy hand installation and secure locking onto PC board edges. Made of UL94V-0 rated Nylon 66 material, this mount is RoHS compliant and meets ASTM D 4066 and PA111 standards. With a temperature range of -40 to 185F, it offers durability and reliability for various applications. Each pack contains 500 mounts, making it a cost-effective solution for your circuit board support needs.

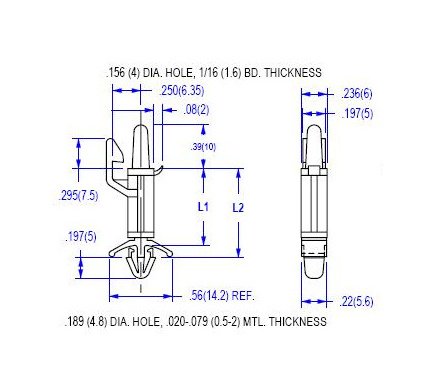

Product Specifications

Specifications Chassis Thickness

.020 - .079 (.5 - 2.0) inches (mm)

Specifications Color

White

Specifications Dim L1

.752 (19.1) inches (mm)

Specifications Dim L2

.843 (21.4) inches (mm)

Specifications Material Code

UL94V-0

Specifications Panel Thickness

.063 (1.6) inches (mm)

Nylon Edge Board Mount for .187 Chassis Hole - UL94V-0
