Nylon Edge Board Mount for Circuit Board Supports
Nylon Edge Board Mount for Circuit Board Supports
SKU:01C-0e87dd
Securely install your circuit boards with the 03 Series Edge Board Mount for reliable and compliant support.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Edge Board Mount for Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Edge Board Mount for Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

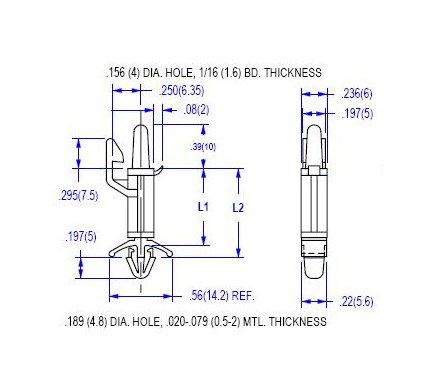

The 03 Series Nylon Edge Board Mount x .187 Chassis Hole is a cutting-edge solution designed for easy manual installation, ensuring a secure lock onto PC board edges. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), this mount guarantees reliability and safety. With ASTM D 4066 and PA111 certifications, our product is RoHS compliant and offers a temperature range of -40 to 185F (-40 to 85C), making it suitable for diverse environments. Enhance your circuit board setup with this durable and compliant edge board mount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
White
Specifications Dim L1
.878 (22.3) inches (mm)
Specifications Dim L2
.969 (24.6) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 (1.6) inches (mm)
