Nylon Edge Board Mount with .187 Chassis Hole - 02 Series
Nylon Edge Board Mount with .187 Chassis Hole - 02 Series
SKU:01C-fa071d
Efficient Nylon Edge Board Mount with .187 Chassis Hole - reducing assembly time, RoHS compliant, -40 to 185F temp range
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Edge Board Mount with .187 Chassis Hole - 02 Series
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Edge Board Mount with .187 Chassis Hole - 02 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Edge Board Mount with .187 Chassis Hole from the 02 Series is a reliable and efficient component for circuit board supports. This product features easy manual installation, reducing assembly time for increased productivity. Constructed from Nylon 66 UL94V-2 material with an option for UL94V-0, it offers excellent durability and fire resistance. Compliant with RoHS standards, this mount has a temperature range of -40 to 185F (-40 to 85C), ensuring versatility in various operating conditions. Ideal for institutional and government procurement needs, this mount meets ASTM D 4066 and PA111 requirements.
Product Specifications

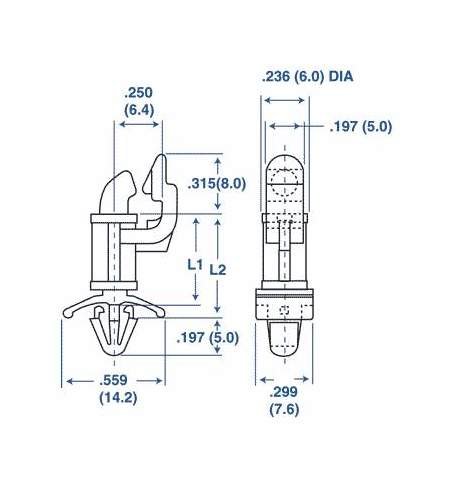

Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
Natural
Specifications Dim L1
.315 (8.0) inches (mm)
Specifications Dim L2
.406 (10.3) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
