Nylon Edge Board Mount with .187 Chassis Hole - 03 Series
Nylon Edge Board Mount with .187 Chassis Hole - 03 Series
SKU:01C-9ed431
Securely install the Nylon Edge Board Mount from the 03 Series, made of UL94V-2 Nylon 66. RoHS compliant, with ASTM D 4066 certification.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Edge Board Mount with .187 Chassis Hole - 03 Series
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Edge Board Mount with .187 Chassis Hole - 03 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Edge Board Mount from the 03 Series offers effortless hand installation and secure locking to the PC board edge, ensuring stability and durability in various applications. Crafted from UL94V-2 Nylon 66 material, this mount is also RoHS compliant and can operate within a temperature range of -40 to 185F (-40 to 85C). With ASTM D 4066 and PA111 certifications, this mount guarantees quality and reliability in circuit board supports.

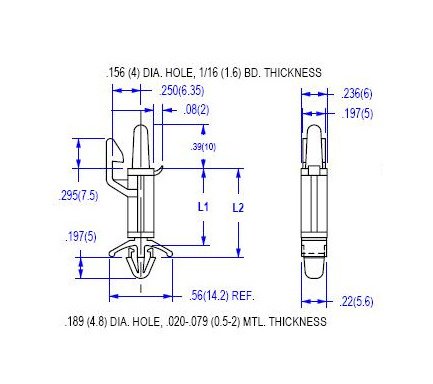

Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
Natural
Specifications Dim L1
1.00 (25.4) inches (mm)
Specifications Dim L2
1.09 (27.7) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
