Nylon Edge Board Mount with .187 Chassis Hole - UL94V-2
Nylon Edge Board Mount with .187 Chassis Hole - UL94V-2
SKU:01C-602601
Effortlessly install the Nylon Edge Board Mount for efficient assembly processes. Packaged in sets of 500, this durable mount ensures reliable circuit board support.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Nylon Edge Board Mount with .187 Chassis Hole - UL94V-2
$49.99
Quantity: 1
Claim Your Seller Account
Nylon Edge Board Mount with .187 Chassis Hole - UL94V-2
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 02 Series: Edge Board Mount x .187 Chassis Hole is a premium choice for circuit board supports, designed for easy hand installation to streamline assembly processes. Made of durable Nylon 66 UL94V-2 material, this mount offers exceptional reliability and safety. With ASTM D 4066 and PA111 certifications, it ensures high performance in a wide temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 mounts. For enhanced safety (UL94V-0), simply add an 'X' to the end of the part number.

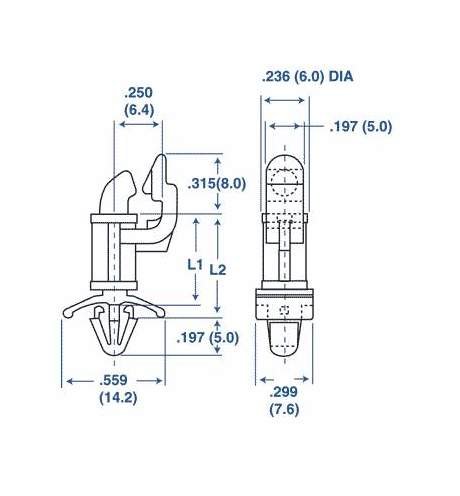

Product Specifications
Specifications Chassis Thickness
.020 - .079 (.5 - 2.0) inches (mm)
Specifications Color
Natural
Specifications Dim L1
.500 (12.7) inches (mm)
Specifications Dim L2
.591 (15.0) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
