Nylon Edge Mount PCB Support with Self-Tapping Screw
Nylon Edge Mount PCB Support with Self-Tapping Screw
SKU:01C-f1c0ec
Nylon Edge Mount PCB Support with Self-Tapping Screw for reliable circuit board mounting. Pack of 1000.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Nylon Edge Mount PCB Support with Self-Tapping Screw
$69.99
Quantity: 1
Claim Your Seller Account
Nylon Edge Mount PCB Support with Self-Tapping Screw
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nylon Edge Mount PCB Support with Self-Tapping Screw is designed for easy installation on .062 thick chassis, providing sturdy support for circuit boards. Manufactured with Nylon 66 UL94V-2 material (UL94V-0 option available), it meets ASTM D 4066 and PA111 standards. With a temperature range of -40 to 185F (-40 to 85C), this support ensures reliable performance in varied environments. Each pack contains 1000 supports, offering a cost-effective solution for secure mounting.

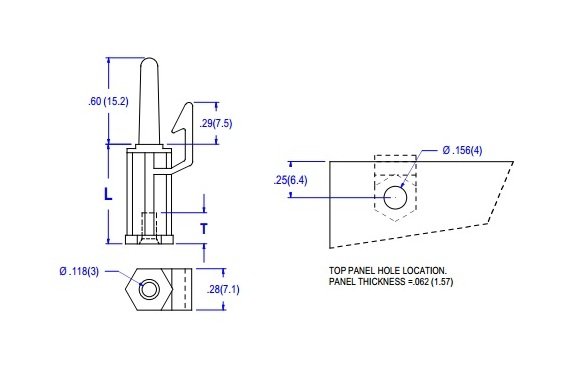

Product Specifications
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications T Inches Mm
.25 (6.4)
