Nylon Flat Board Support for .217 Chassis Hole (08 Series)

Name: Nylon Flat Board Support for .217 Chassis Hole (08 Series)
Brand: All Electronics Hardware
SKU: 01C-30dbaa
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-30dbaa

Secure, easy-to-install Nylon Flat Board Support for .217 chassis hole. RoHS compliant, temperature-resistant, and bulk-packaged for convenience.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

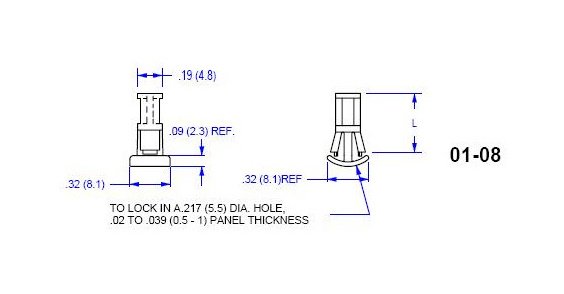

The Nylon Flat Board Support x .217 Chassis Hole from the 08 Series is designed for a chassis thickness range of .020-.039 inches. This reverse PCB post offers easy installation, secure locking, and minimal protrusion under the chassis. Made of Nylon 66 UL94V-2 material, this support is RoHS compliant and can withstand temperatures from -40 to 185F (-40 to 85C). Each package contains 500 supports for convenient bulk use. Optional UL94V-0 material available by adding 'X' to the end of the part number.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

White

Specifications Dim L

.320 (8.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

Nylon Flat Board Support for .217 Chassis Hole (08 Series)
