Nylon Flat Board Support for .217 Chassis Hole, UL94V-0
Nylon Flat Board Support for .217 Chassis Hole, UL94V-0
SKU:01C-c0d110
Securely support circuit boards with Nylon Flat Board Support, UL94V-0, in .020-.039in chassis thickness range. Easy installation, RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Nylon Flat Board Support for .217 Chassis Hole, UL94V-0
$24.99
Quantity: 1
Claim Your Seller Account
Nylon Flat Board Support for .217 Chassis Hole, UL94V-0
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

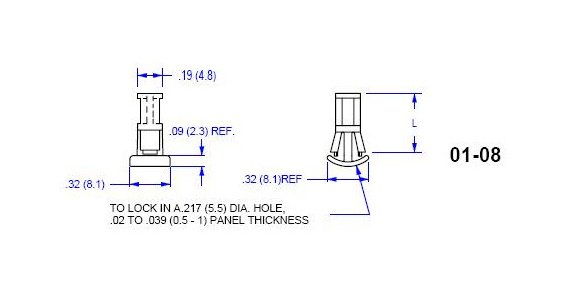

The Nylon Flat Board Support for .217 Chassis Hole from the 08 Series is designed to securely support circuit boards within a chassis thickness range of .020-.039 inches. It features easy installation from the underside of the chassis, ensuring a secure and releasable lock with minimal protrusion. Made of Nylon 66 UL94V-0, this support is RoHS compliant and suitable for a temperature range of -40 to 185F. Each pack contains 500 supports, offering high-quality material and reliable performance for your assembly needs.
Product Specifications
Specifications Chassis Thickness
.020 - .039 (0.5 - 1.0) inches (mm)
Specifications Color
White
Specifications Dim L
.472 (12.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
