Nylon Flat Board Support for Chassis, .217 Hole, UL94V-0, Pack of 500

Name: Nylon Flat Board Support for Chassis, .217 Hole, UL94V-0, Pack of 500
Brand: All Electronics Hardware
SKU: 01C-9029bf
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-9029bf

Durable Nylon Flat Board Support for Chassis, .217 Hole, RoHS Compliant, UL94V-0, Pack of 500

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

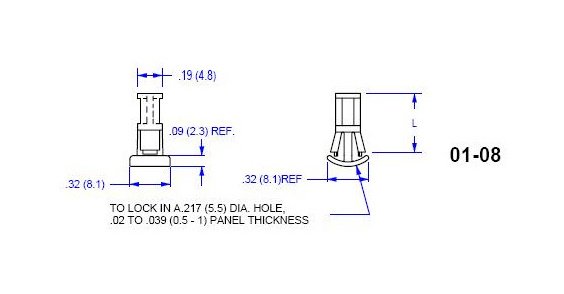

The 08 Series Flat Board Support x .217 Chassis Hole is designed for seamless installation on chassis with a thickness range of .020-.039 inches. Crafted from durable Nylon 66 material, this support post ensures secure locking while allowing for easy release. With minimal protrusion under the chassis, it offers a sleek and efficient solution for circuit board supports. This product is RoHS compliant and can withstand temperatures ranging from -40 to 185F. Available in white color, UL94V-0 variant also available upon request for enhanced fire safety.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

White

Specifications Dim L

.551 (14.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0
