Nylon Flat Board Support for Circuit Boards - .217 Chassis Hole

Name: Nylon Flat Board Support for Circuit Boards - .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-5077e3
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-5077e3

Enhance PCB stability with Nylon Flat Board Support for .217 Chassis Hole. Secure, compliant, and durable.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

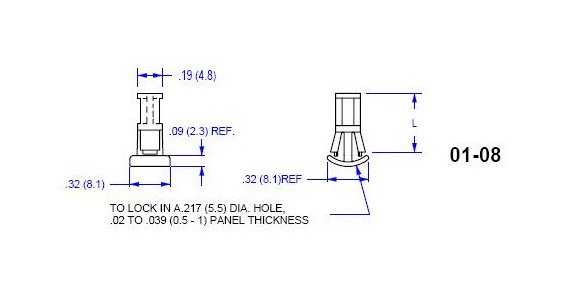

Empower your electronic assemblies with the 08 Series Flat Board Support designed for precise PCB positioning in chassis thicknesses ranging from .020 to .039 inches. Crafted from durable Nylon 66 UL94V-2 material, this support ensures secure yet releasable locking mechanisms with minimal protrusion. Compliant with ASTM D 4066 and RoHS standards, this support boasts a temperature range of -40 to 185F (-40 to 85C), offering reliable performance in varied environments.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

Natural

Specifications Dim L

.630 (16.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-2
