Nylon Flat Board Support for Circuit Boards - Pack of 500
Nylon Flat Board Support for Circuit Boards - Pack of 500
SKU:01C-1b12e8
Securely support circuit boards with 08 Series Nylon Flat Board Support. Pack of 500, RoHS compliant, easy release design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Nylon Flat Board Support for Circuit Boards - Pack of 500
$29.99
Quantity: 1
Claim Your Seller Account
Nylon Flat Board Support for Circuit Boards - Pack of 500
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

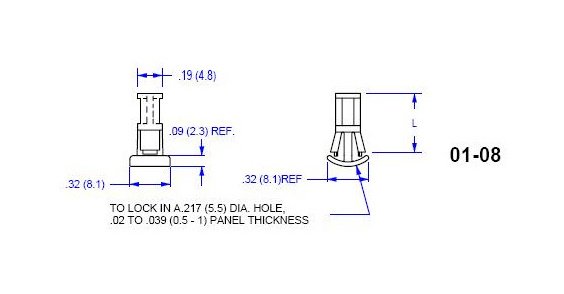

The 08 Series Nylon Flat Board Support is designed for seamless installation in a chassis with a thickness range of 0.020 to 0.039 inches. Its innovative design ensures secure locking while allowing for easy release, all with minimal protrusion under the chassis. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and has a temperature range of -40 to 185°F. Each pack contains 500 supports, providing a cost-effective solution for circuit board mounting needs.
Product Specifications
Specifications Chassis Thickness
.020 - .039 (0.5 - 1.0) inches (mm)
Specifications Color
Natural
Specifications Dim L
.709 (18.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-2
